Automatic 12 Axes CNC Spring Machine with 1-4mm Wire Capacity and 100m/min Speed for High Efficiency

제품 상세 정보:

원래 장소:	광동, 중국
브랜드 이름:	HYD

결제 및 배송 조건:

최소 주문 수량:	1

상세 제품 설명

무게:	3200kg	전압:	380 v
힘:	27 Kw	와이어 크기:	저탄소 강철 : 2-6mm, 고 탄소 강철 : 1-4mm
서보 모터:	12 축	맥스 와이어 속도:	100m/분
와이어 피드 롤러:	4 쌍	최대 오차:	± 0.15 (길이)
제어 시스템:	1 세트	사로 러:	300kg
서보 모터 동력:	21.5 kw	가장 짧은 천사 길이:	4 배 와이어 직경
전원 공급 장치:	380V ± 10%V50Hz	기계 치수:	L1100W1450H2000mm
모터 브랜드:	산요
강조하다:	12 Axes CNC Spring Machine , 1-4mm Computer Spring Machine , 100m/min Spring Coiling Machine

Automatic 12 Axes Swivel Type Spring Making Machine

Multi-function computer spring machine for metal & metallurgy applications with wire sizes from 1-4mm.

Technical Specifications

Model	HYD-42T-12A	HYD-42T-13A
Wire Size	Low-carbon Steel 2-6mm High-carbon Steel: 1-4mm	Low-carbon Steel: 2-6mm High-carbon Steel: 1-4mm
Servo Motors	12 axes	13 axes
Lead Rail	tineraries 120mm	tineraries 120mm
Wire Feed Roller	4 Pairs	4 Pairs
Maximum error	±0.15 (Length)	±0.15 (Length)
Max Wire Feed Speed	100m/min	100m/min
Control System	1SET	1SET
Decoiler	300KG	500KG
Reducer	10PCS	11PCS
Servo Motor Power	21.5KW	27KW
Motor Brand	Sanyo	Sanyo
Shortest Angel Length	4 Times Wire Diameter	4 Times Wire Diameter
Power Supply	380V±10%V50Hz	380V±10%V50Hz
Machine Dimension	2500KG	3200KG
Machine Size	L1100W1450H2000MM	L2100W2050H2000MM

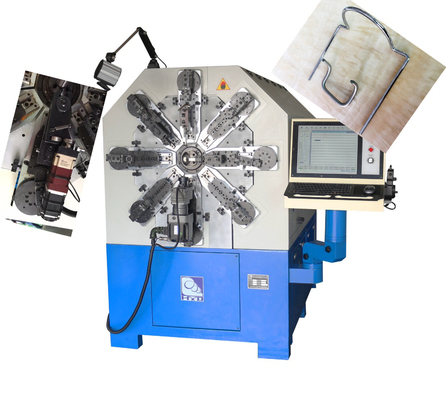

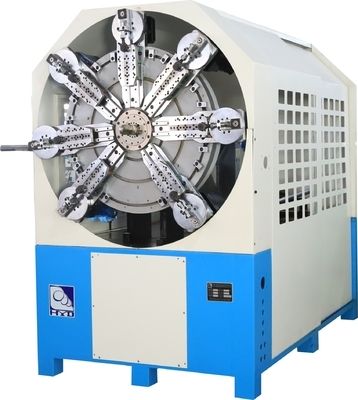

Machine Gallery

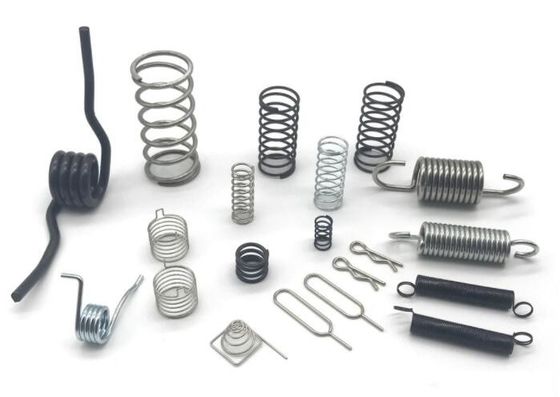

Application Scenarios

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
