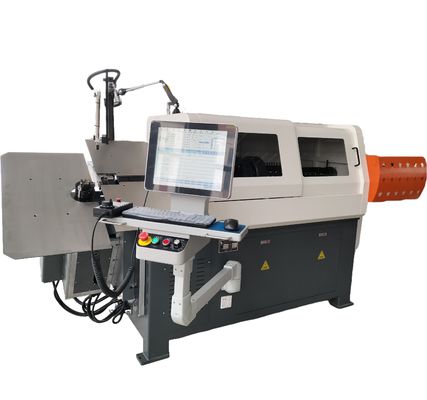

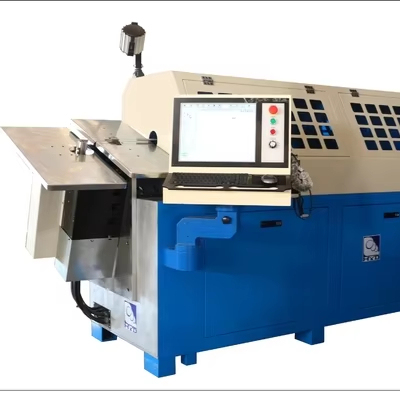

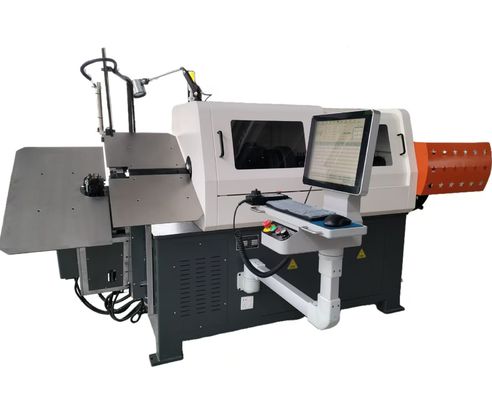

8 Axis 2D/3D Rotary CNC Wire Bending Machine Automatic Wire Bender for 2-10mm Wire

제품 상세 정보:

원래 장소:	광동, 중국
브랜드 이름:	HYD

결제 및 배송 조건:

최소 주문 수량:	1

상세 제품 설명

무게:	2800kg	전압:	380 v
힘:	12kW	와이어 크기:	3.0-10.0mm ts≤500n
서보 모터:	10 축	제어 시스템:	전용 CNC 컴퓨터
맥스 와이어 피드:	10000.0mm	최소 와이어 피드:	0.01mm
맥스 와이어 속도:	> 60m/min	와이어 피드 길이:	제한 없는
기압:	5-6kg/cm2	프로브 수:	2
기계 크기:	L2900W950H1620mm	모터 브랜드:	Sanyo/Yaskawa
단계:	3 상
강조하다:	8 Axis CNC Wire Bending Machine , 2D/3D Rotary Wire Bending Machine , 2-10mm Automatic Wire Bender

8 Axis 2D/3D Rotary CNC Wire Bending Machine 2-10mm Automatic Wire Bender with Motor Core Component

HYD-WR8A-100 Rotary Wire Type 3D Wire Bending Machine

Technical Specification	HYD-WR8A-80	HYD-WR8A-100
Wire Size	φ3.0-φ8.0mm TS≤500N	φ3.0-φ10.0mm TS≤500N
Servo Motors	8 axes	8 axes
Control System	Dedicated CNC Computer	Dedicated CNC Computer
Motor Brand	Sanyo/Yaskawa	Sanyo/Yaskawa
Max Wire Feed	10000.0mm	10000.0mm
Min Wire Feed	0.01mm	0.01mm
Max Wire Speed	>60m/min	>60m/min
Wire Feed Length	unlimited	unlimited
Power	3phase, 380V	3phase, 380V
Air Pressure	5-6KG/CM²	5-6KG/CM²
Probe	2	2
Machine Size	L2900W950H1620MM	L2900W950H1620MM

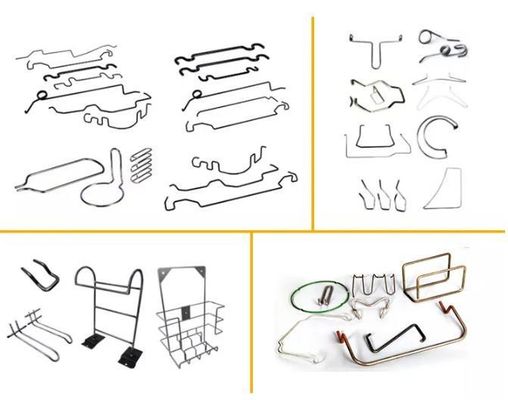

Application Scenarios

Product Categories

Why Choose Us

About Us

Transportation

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customize as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
